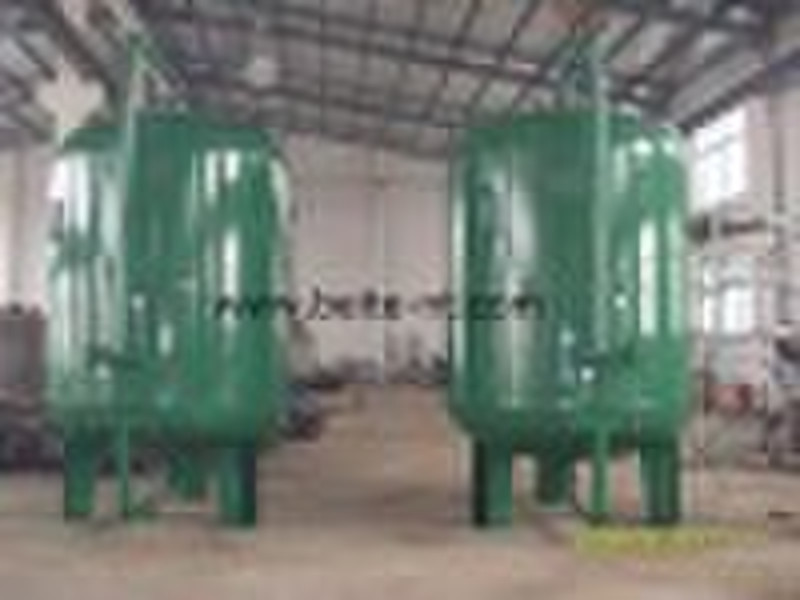

Mechanical filter (Quartz sand filter)

Mechanical filter is also called quartz sand filter or pressure typr filter Application Pretreatment of ion-exchanger and desalination system. Pre-filtration in RO system. Filtration of civil life water, sewage and waste water of industry Coarse filtration of feeding water in industry and pool water. Features Reasonable structure Anti-corrosion: Epoxy resin inside and outside to avoid .pollution Easy for using and repairing Types (method of inlet water ) Uniflow type: water flows from top to bottom. Double flow type: water flows in both from top and bottom, flows out from middle outlet. Working principle membrane filtration— Osmosis filtration— Contact coagulate— other procedures. Quartz sand materials configuration Height of quartz sand mm 200 150 150 100 600 Partical size mm 10-20 5-10 2.5-5.0 1.0-2.5 0.5-1.0 Remarks Fill 20-25 pcs of cobbles in lower head according actual height Sequence Fill from bottom layer in order Technical parameters 1, Working temperature 5 50°C 2, Operating speed 10 12m/h 3, Back wash strength 16 18L/m2.s 4, Back wash time 5 10 min 5, Turbidity inlet water10 20mg/L Turbidityoutlet water 2 5mg/L Turbidityinlet water ≤10mg/L Turbidityoutlet water ≤2mg/L Shape parameters ModelQuartz sand
