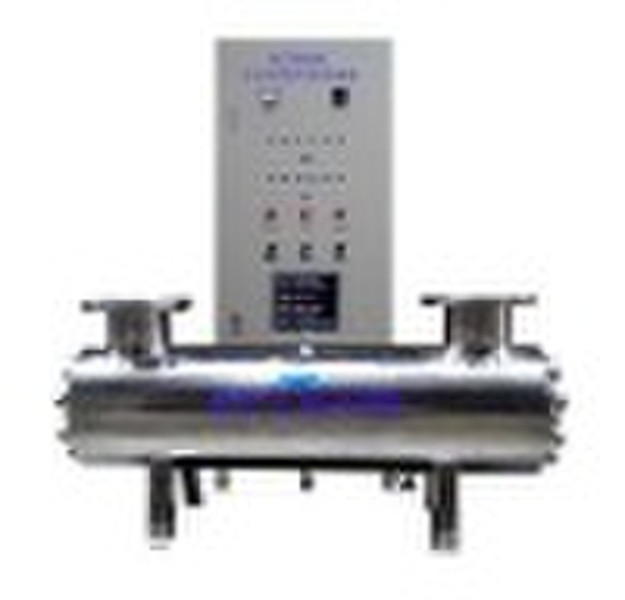

UV sterilizer (100t/h 120t/h)

UVs/ UV sterilizer ( ultraviolet sterilizer) Outstanding feature 1, Sterilizer stainless steel shell warrenty 10 years, other fittings are guaranteed usable one year, free for repair and replace (unconditional man-made factors and force majeure except). 2, Stainless steel reaction chamber adopts imported 304 or 316L, formed through automatic welding, all the threaded by blunt pull tensile after welding smooth without dead Angle, internal and external polishing high brightness mirror chamber greatly enhanced by ultraviolet radiation intensity, enhance sterilization effect. Thickening chamber design, pressure-bearing can reach 0.8 Mpa, strict pressure and hydrotest to completely prevent slack phenomenon. 3, UV tubes using Europe imported low-voltage high strength amalgam lamp, use life-span 9000-13,000 hours, equipping efficient electronic ballast further enhance the whole life and the sterilizer effect, the whole sterilization rate as high as 99.99%. 4, The system design is according to the United States NSF55 "ultraviolet microbial water treatment equipment" standard and national living and drinking water UV sterilizer industry standard CJ/T204-2000. Parameter Current type UV Sterilizer ModelFlowm³/hNormal DiametermmPowerwPressure resistance kg/cm²Lamp Life hWeightkgBTZW-1120106≥1000030BTZW-2225406≥1000045BTZW-6632806≥1000050BTZW-88401206≥1000060BTZW-1212501606≥1000070BTZW-1515652006≥10000120BTZW-2020652406≥10000130BTZW-2525802806≥10000140BTZW-30301003206≥10000150BTZW-40401003606≥10000160BTZW-60601254206≥10000210BTZW-80801254506≥10000220BTZW-1001001507006≥10000275BTZ W -1251251508406≥10000300BTZ W -15015020011206≥10000325BTZ W -20020020014006≥10000350BTZW-30030025021006≥10000400Note 1) For customization, deploy online monitoring instrument or remote control system such as UV-lamp monitoring system, UV-intensity or water temperature observation system, sterilization time accumulation system. 2) For customization, deploy manual type or automatic type washing system.
